Steam
Trap
Monitors

A smart system to alert failures

Detects both open and closed failures

on all steam trap types

Uses vibration, ultrasound, and temperature to detect failures

Slide and lock onto pipes of all sizes

7-year battery life

How it Works

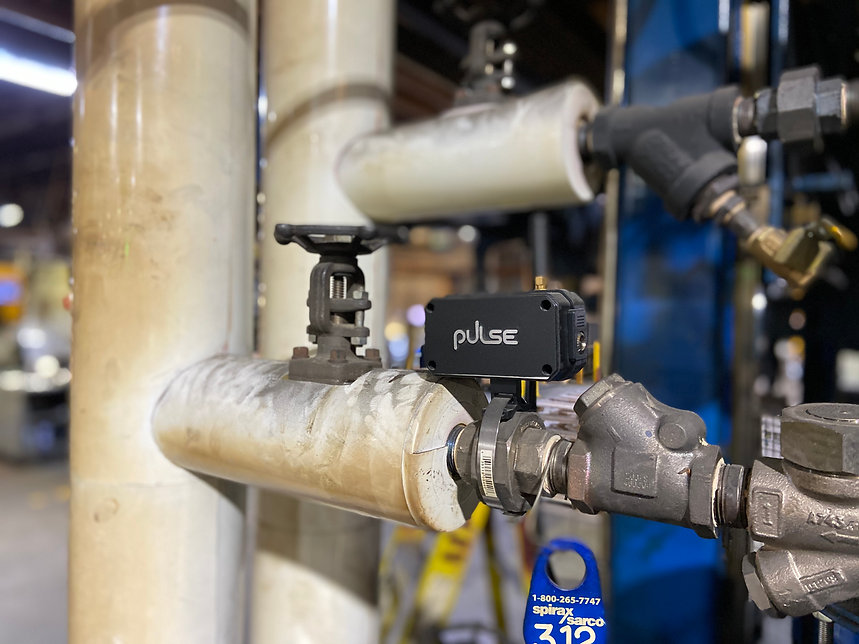

Monitors clamp onto the condensate line and communicate through a gateway using LoRa (Long Rang Radio)

Monitor

Gateway

Cloud AI

Alerts + Dashboard

LTE / 3g

LoRa

IMG_6518.HEIC

Gateway

Support up to 100 monitors per gateway

LoRa 915 MHz - 200 meters

indoors, 2 km outdoors

Preconfigured to LTE/3G network directly to our cloud (no WiFi required)

Plug and play

Alerts

Data is continuously monitored and analyzed by a secure cloud based AI system

Failure alerts are detected accurately and reported autonomously

No additional fees for cloud hosting

Failure alerts emailed directly to designated maintenance personnel


Dashboard

Customized steam trap inventory management in one place

Use visualized data to confirm automated failure alerts

Review health and operating costs of steam traps in real-time

FAQ

How do Pulse monitors detect failures in steam traps?


Pulse monitors use ultrasound, vibration and temperature to detect failures in steam traps. Once a failure is found, the maintenance team is sent an immediate alert on their phone to replace the faulty steam trap.




How do you install Pulse monitors?


Pulse monitors clamp on in a couple minutes on-to the condensate side of any steam trap and are designed to fit pipes of all sizes.




Does Pulse require any on-site connections?


No. Pulse monitors communicate data to a central gateway using LoRa (Long Range). LoRa is a wide area radio frequency that is known for it’s ability to send data long distances and through thick obstructions with a range of 200 meters indoors and 2 km outdoors. The gateway plugs into a 120V outlet and uses LTE to communicate with our cloud. Once the data is processed on the cloud, it is displayed on the provided dashboard and alerts are sent out if a failure is detected. The Pulse monitoring system is very plug and play, requires no on-site connections, and does not need any extra configurations on the customer's end.




Can Pulse monitoring data be integrated locally?


If required, data can be integrated into your company's internal asset management software using ethernet. Additionally, we can also send data to your cloud from our AWS server.





Interested?
